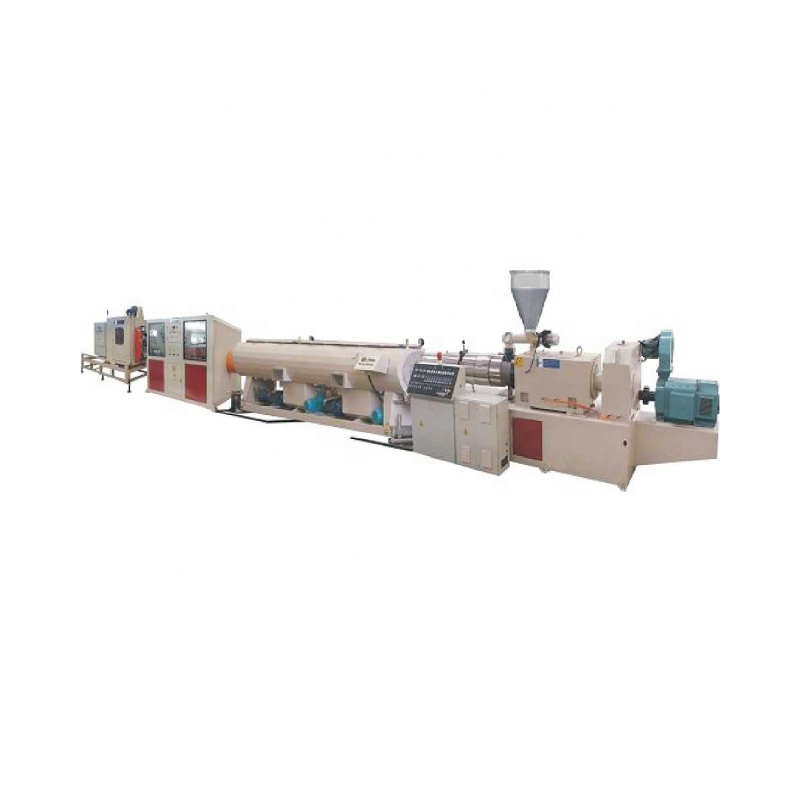

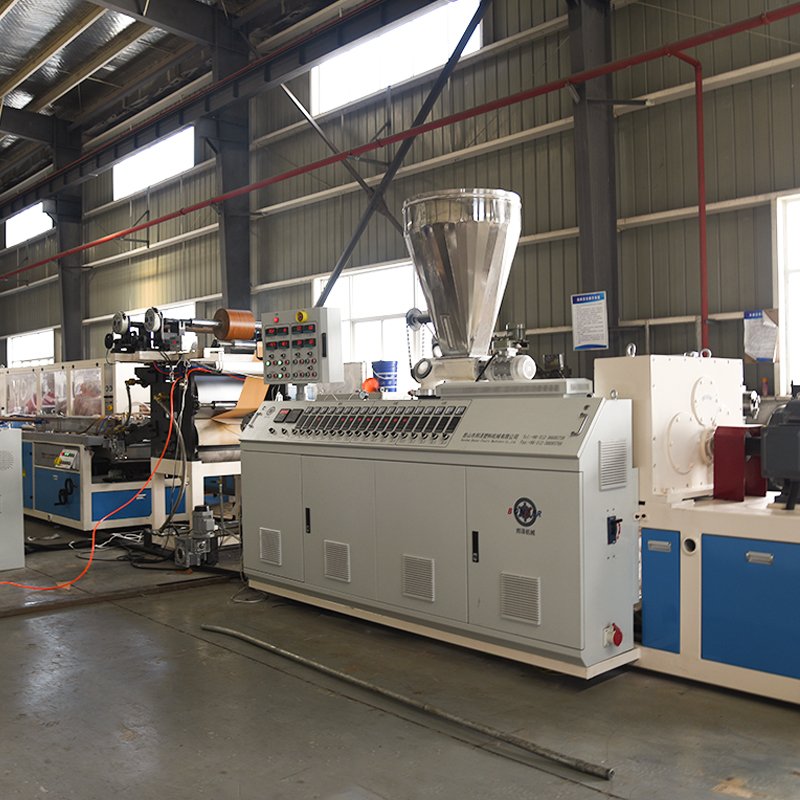

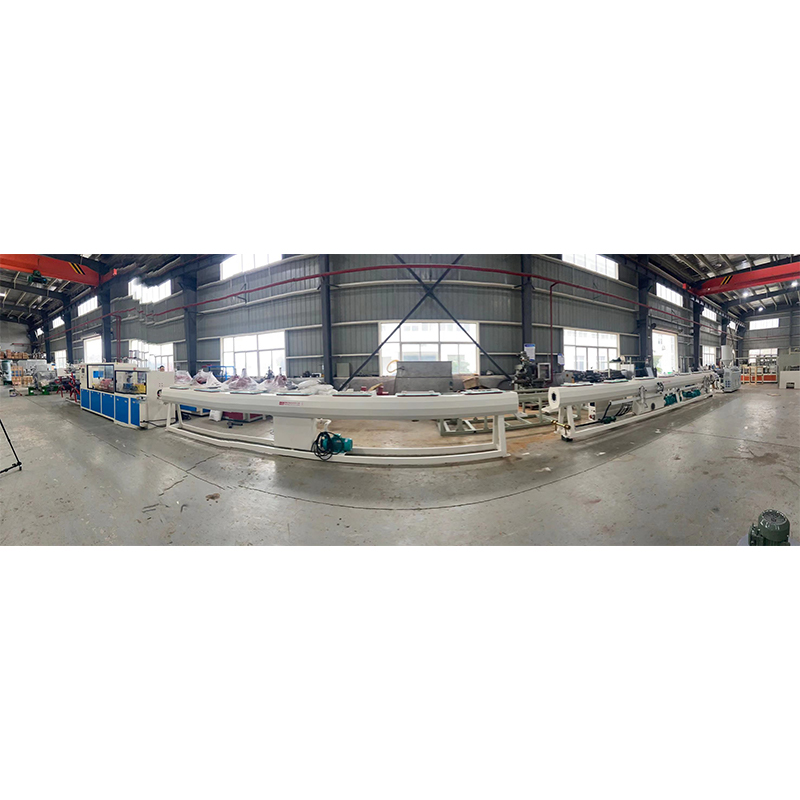

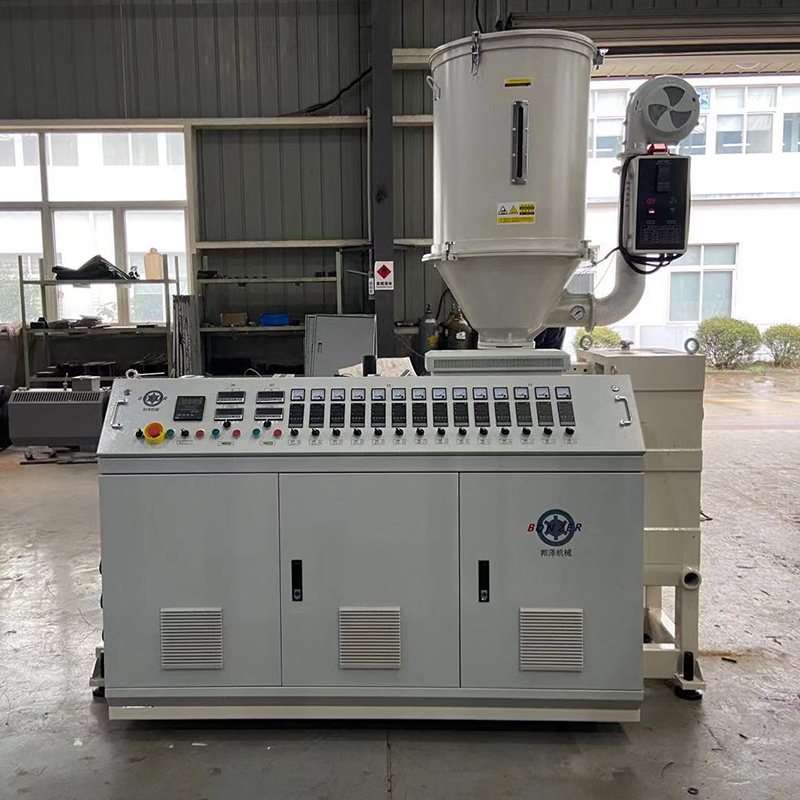

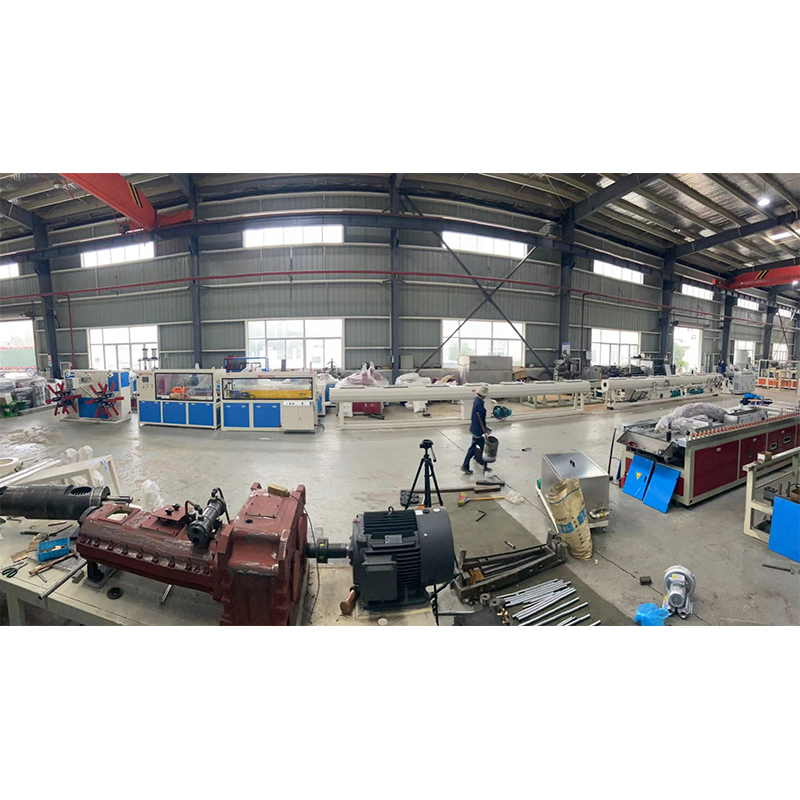

PP Pipe Extrusion Line

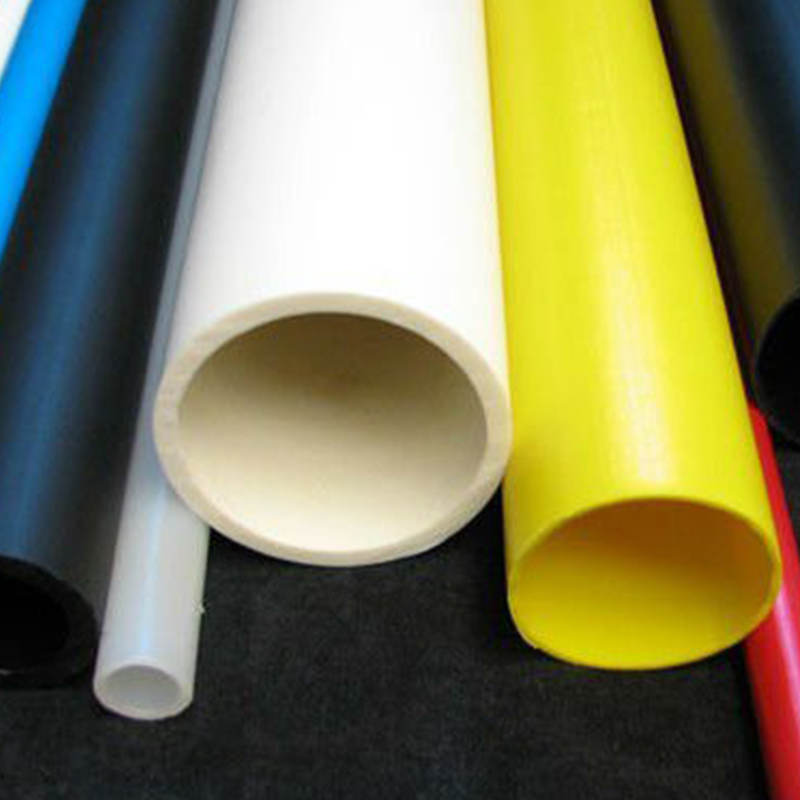

PP pipe (polypropylene pipe) is a high-performance plastic piping solution made from polypropylene (PP) resin. It is widely used in building water supply and drainage systems, chemical material transport, agricultural irrigation, and industrial wastewater treatment. The pipe is characterized by excellent corrosion resistance, wide temperature adaptability, light weight, and environmental safety, making it ideal for modern engineering applications requiring reliability and hygiene.

Inquiry Us
  • PP Pipe Extrusion Line
  • PP Pipe Extrusion Line
  • PP Pipe Extrusion Line
  • PP Pipe Extrusion Line
  • PP Pipe Extrusion Line
  • PP Pipe Extrusion Line
  • PP Pipe Extrusion Line
PREV：Steel Skeleton Reinforced Pipe Extrusion Line
NEXT：PE Pipe Extrusion Line

Product Video

Product Information

2. Detailed Description

  • Main Applications

    • Building Water Supply & Drainage: Suitable for both hot and cold water systems in residential, commercial, and public facilities.
    • Chemical Industry: Reliable for conveying acids, alkalis, and chemical raw materials with minimal degradation.
    • Agricultural Irrigation: Resistant to UV rays and weather conditions, ensuring long-term outdoor performance.
    • Industrial Wastewater: Handles high-temperature and corrosive liquids, ideal for chemical or plating plants.

  • Performance Features

    • Excellent Corrosion Resistance: Withstands acids, alkalis, salts, and organic solvents.
    • High Temperature Tolerance: Operational range from -20°C to 95°C, ensuring versatility.
    • Lightweight & Easy Installation: Simple transportation and heat fusion welding connection ensure high-strength joints.
    • Eco-Friendly & Non-Toxic: Complies with drinking water safety standards, free from heavy metals.
    • Durability: Service life over 50 years under standard conditions.
    • UV Resistance: Maintains stability and mechanical strength even under prolonged sunlight exposure.

3. Technical Specifications

Parameter Unit Typical Value / Range
Material — Polypropylene (PP-R, PP-B, PP-H)
Density g/cm³ 0.90 – 0.91
Operating Temperature °C -20 to 95
Working Pressure MPa 0.6 – 1.6
Tensile Strength MPa ≥25
Elongation at Break % ≥200
Chemical Resistance — Excellent
Service Life Years ≥50
Connection Method — Hot-melt welding / Socket fusion / Flange

4. Production Process

  • Raw Material Selection: High-purity polypropylene granules.

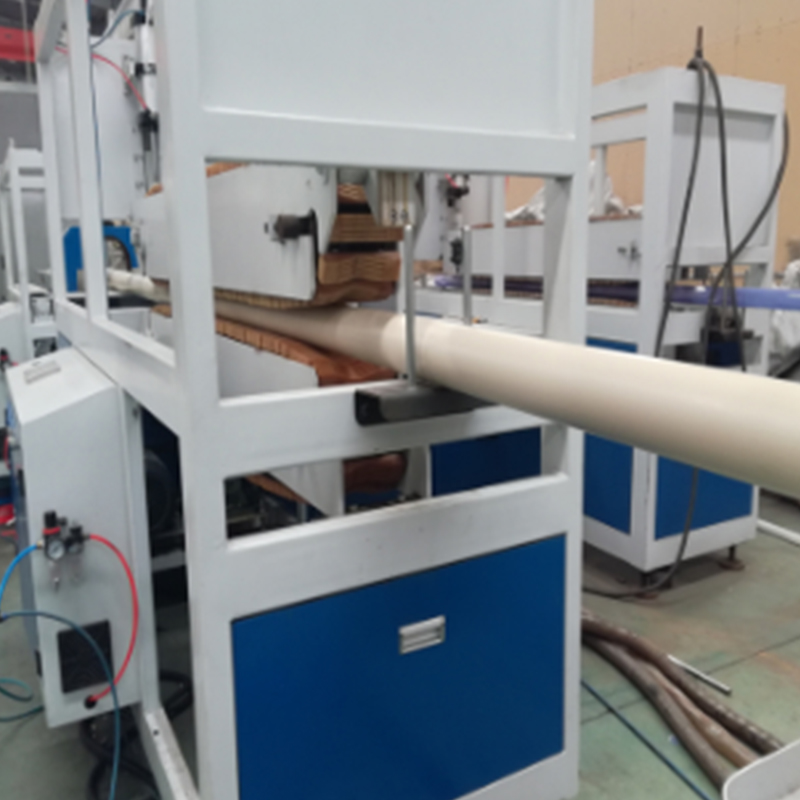

  • Extrusion & Sizing: Extruded through precision die heads to ensure consistent wall thickness.
  • Cooling & Calibration: Controlled cooling guarantees dimensional accuracy.
  • Cutting & Inspection: Automatic cutting and quality inspection for smooth edges and uniform diameter.
  • Packaging: Bundled or coiled, wrapped with protective film to avoid deformation during transport.

5. Quality Standards & Certifications

  • Conforms to ISO 15874, DIN 8077/8078, and GB/T 18742 standards.
  • SGS, CE, and RoHS certified for safety and environmental compliance.
  • Meets potable water hygiene standards for residential and industrial applications.

6. Packaging & Delivery

  • Packaging: Wrapped with PE film or woven bag; customized packaging available upon request.
  • Delivery Time: Normally 10–20 days after deposit, depending on order size.
  • Shipping Options: By sea, land, or combined transportation.
  • Customization: OEM/ODM logos, colors, and diameters available (e.g., DN20–DN400).

7. Comparative Analysis Table

Feature / Property PP Pipe (Polypropylene) PVC Pipe (Polyvinyl Chloride) PE Pipe (Polyethylene) PPR Pipe (Polypropylene Random Copolymer)
Material Type Thermoplastic (PP) Thermoplastic (PVC) Thermoplastic (PE) Copolymerized Polypropylene
Temperature Range (°C) -20 to 95 0 to 60 -40 to 80 -20 to 95
Corrosion Resistance Excellent Good Excellent Excellent
Pressure Resistance High Medium Medium High
Toxicity Non-toxic Contains plasticizers Non-toxic Non-toxic
Installation Method Heat fusion / Welding Solvent cement Heat fusion / Butt welding Heat fusion
Weight Light Light Very light Light
UV Resistance Good Average Good Good
Chemical Resistance Excellent Moderate Excellent Good
Service Life ≥50 years 25–30 years 30–50 years 50 years
Suitable for Hot Water ✅ Yes ❌ No ⚠ Limited ✅ Yes
Environmental Friendliness High Medium High High
Typical Applications Building piping, industrial wastewater, chemical transport Drainage, cable conduit Gas, water supply, irrigation Domestic hot & cold water systems
Overall Advantage Best balance of chemical, thermal, and cost performance Low-cost and rigid Excellent flexibility Excellent hygiene and heat resistance

8. Key Benefits Summary

  • Superior corrosion and heat resistance compared with PVC and PE alternatives.
  • Long lifespan (≥50 years) with minimal maintenance.
  • Safe for potable water and eco-friendly due to non-toxic polypropylene.
  • Versatile application range across residential, industrial, and agricultural sectors.
  • Customizable size and color options available to fit project specifications.
related products
Wood-like Laminated Soffit Panel Extrusion Line

Wood-like Laminated Soffit Panel Extrusion Line
Stone-like Laminated Soffit Panel Extrusion Line

Stone-like Laminated Soffit Panel Extrusion Line

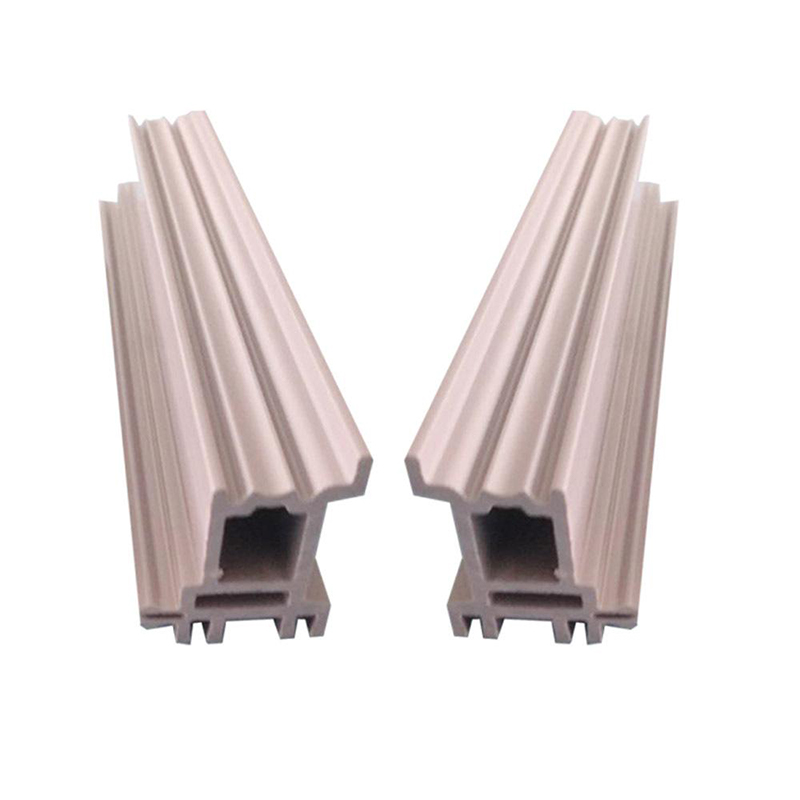

PVC Door And Window Profile Extrusion Line

PVC Door And Window Profile Extrusion Line

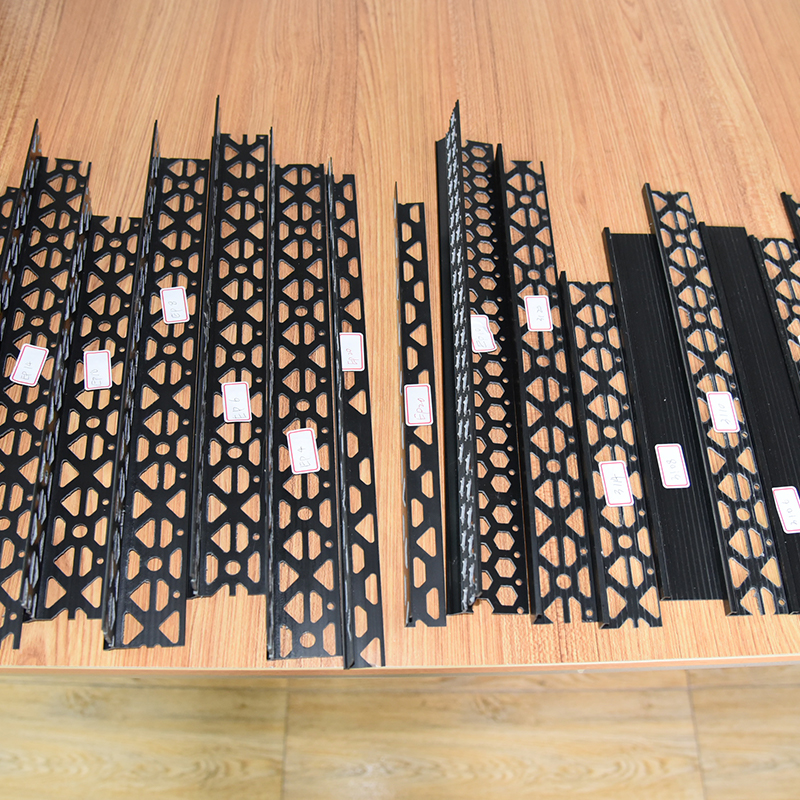

Corner Beam Extrusion Line

Corner Beam Extrusion Line

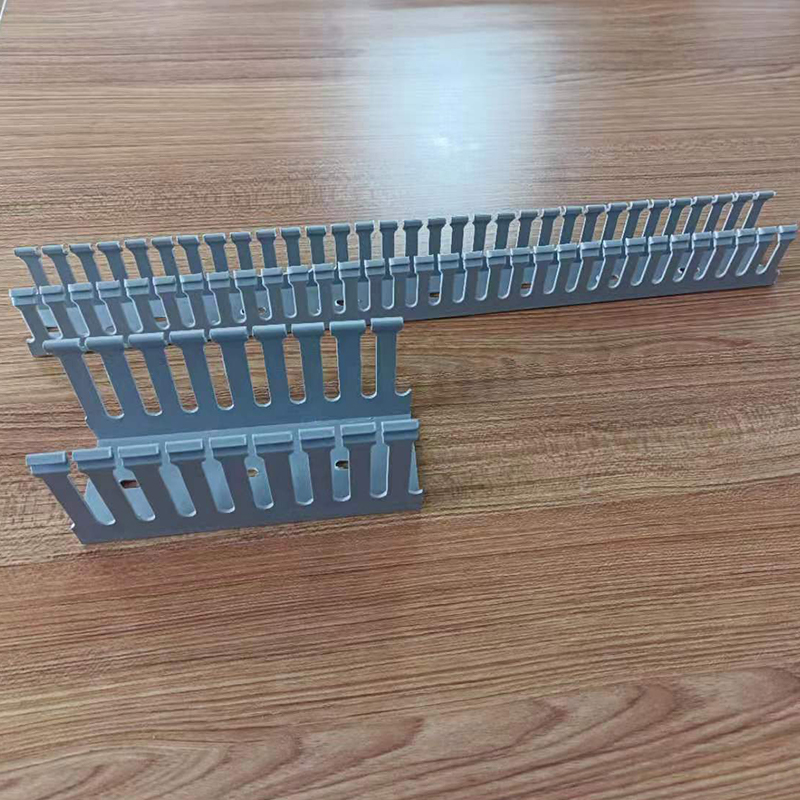

Cable Trunking Extrusion Line

Cable Trunking Extrusion Line

Kunshan Bonzer Plastics Machinery Co., Ltd.

Kunshan Bonzer Plastics Machinery Co., Ltd. is Custom PP Pipe Extrusion Lines Manufacturers and PP Pipe Extrusion Machine Factory, established in 2016, a company specializing in the design and manufacture of plastic extrusion equipment. With Shanghai to the east and Suzhou to the west, we have developed transportation, which is convenient for logistics and export. We have developed and manufactured many and innovative extrusion equipments both at home and abroad, which are highly appreciated by our customers mainly due to the innovative, efficient and energy-saving features of our products. We offer Pastic Pipe Extrusion Lines for sale.
The company is always committed to the research and development of new products to meet the production needs of international customers. Equipped with high-quality technical professionals in plastic machinery design, the company keeps updating its products, so that the company's products have been keeping the manage in the industry. At the same time, the company also provides customers with high-quality technical advice and complete after-sales service, which deepens the recognition and praise of our customers and makes us have a long-lasting competitiveness among our peers.
Our major products include screws and barrels, extruders, extrusion lines of indoors decorative materials, extrusion lines of decorative materials, extrusion lines of PVC/WPC profiles, extrusion lines of foamed PVC plates, extrusion lines of pipes, extrusion lines of single-layercorrugated pipes, granulating lines, washing and recycling lines, extrusion lines of sheets and etc. In short, we have a wide range of products and styles, which are exported to Russia, Central Asia, Southeast Asia, Africa, America, Europe and other parts of the world, and have been well received by our customers.
Kunshan Bonzer Plastics Machinery Co., Ltd.
Certificate Of Honor

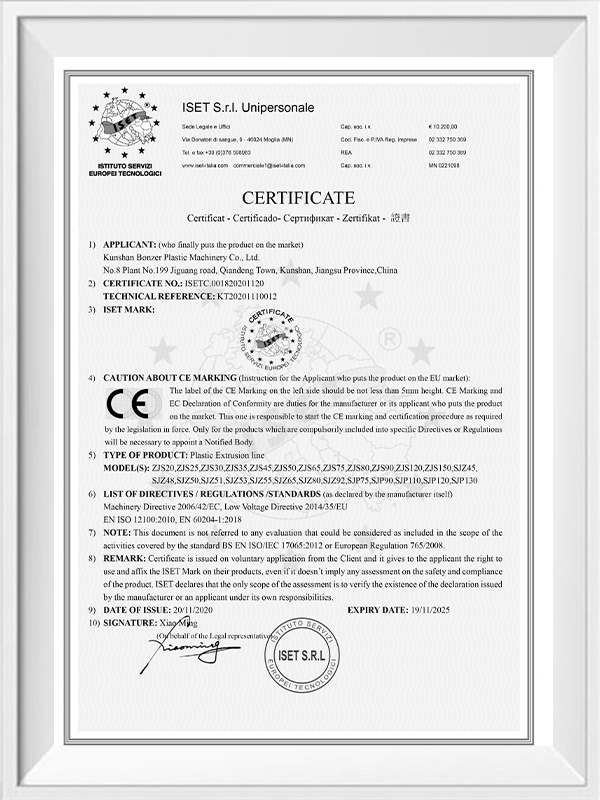

  • CE Certificate
