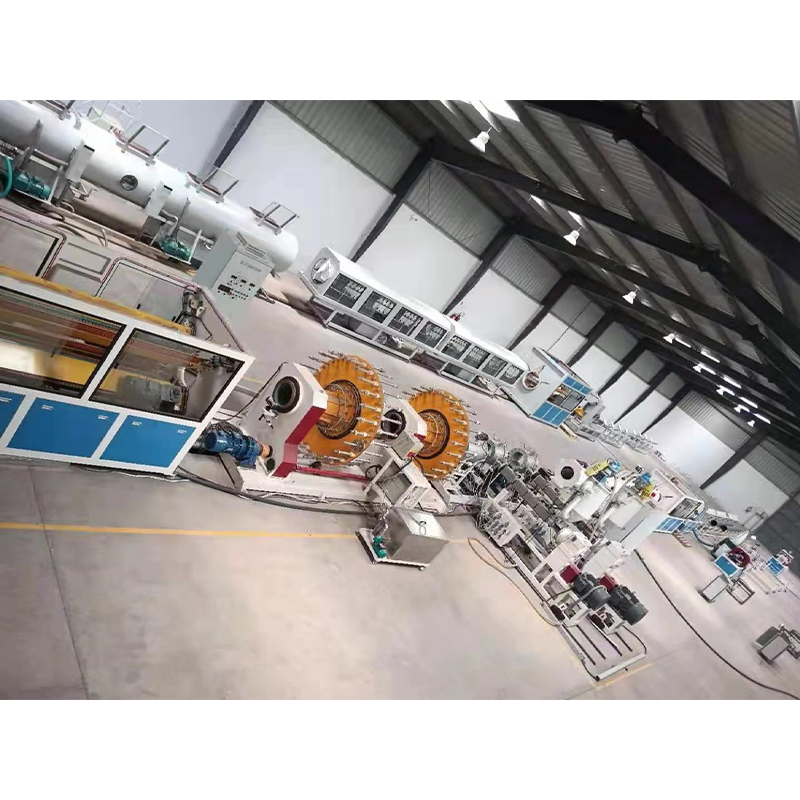

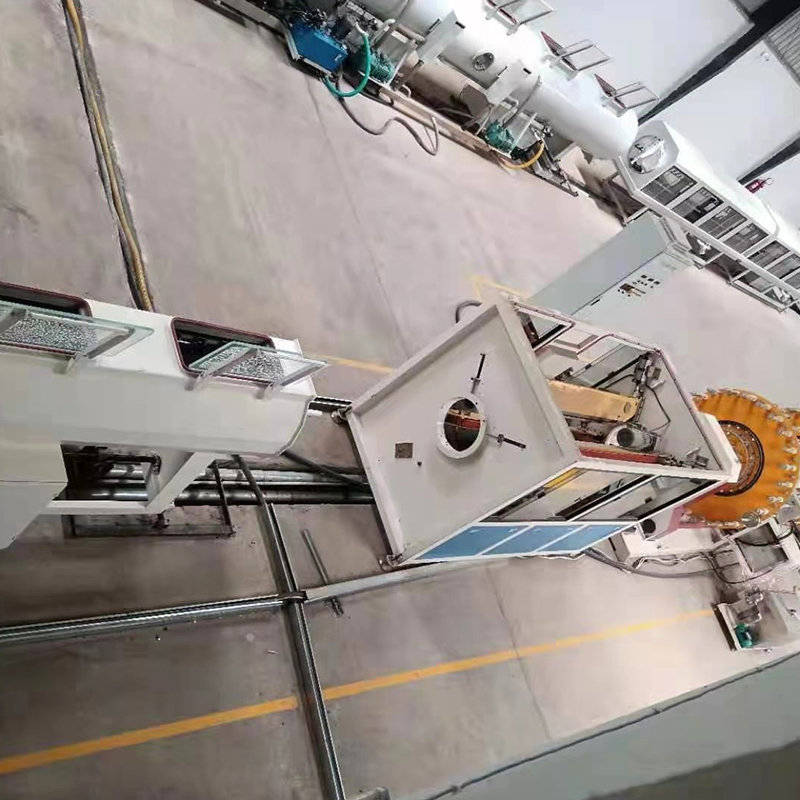

PE Pipe Extrusion Line

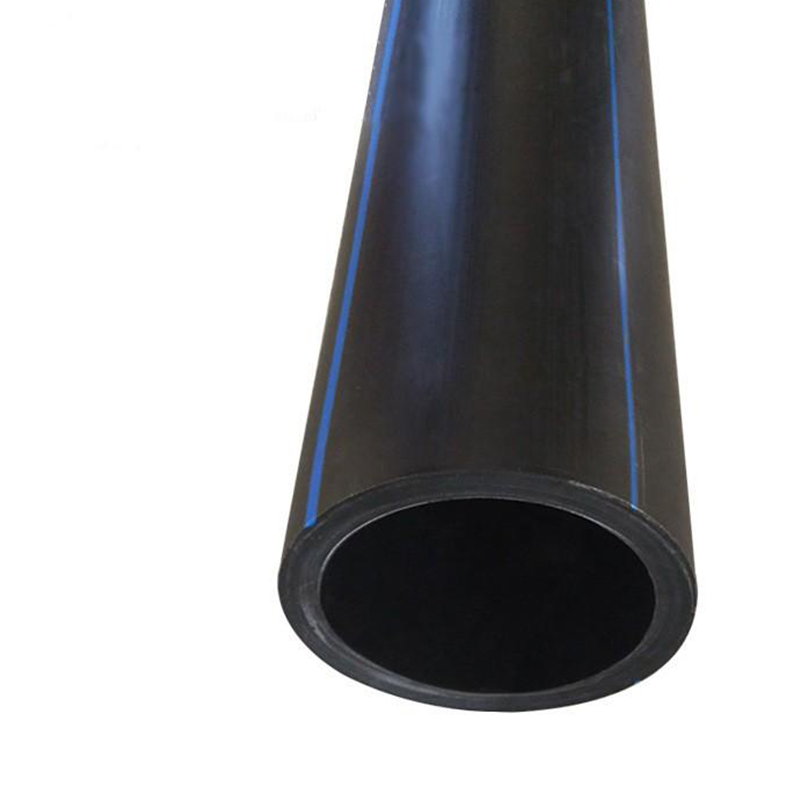

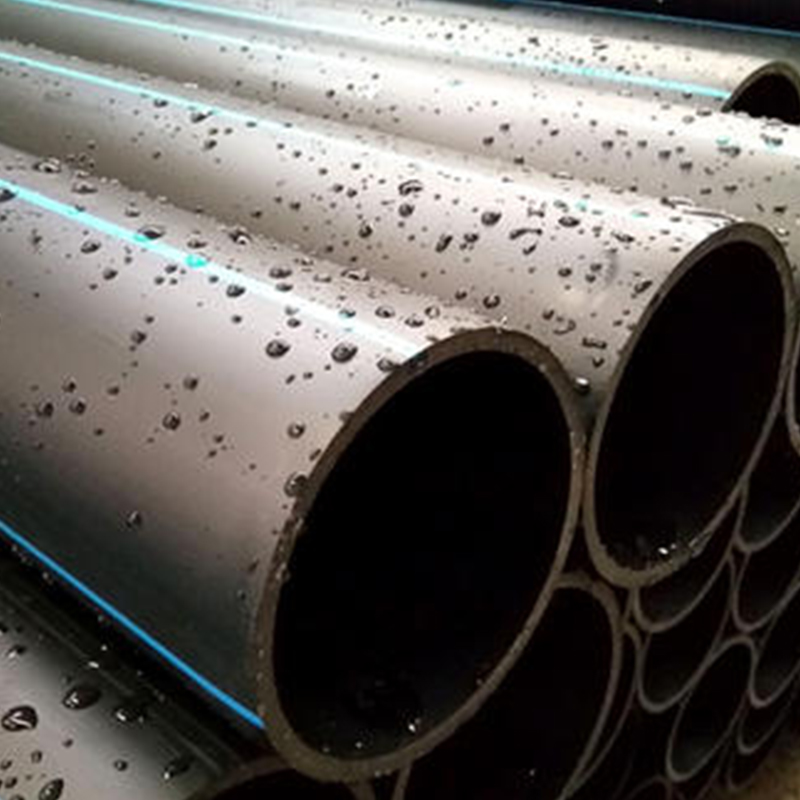

PE pipes (Polyethylene pipes) are high-performance thermoplastic pipes widely used in municipal engineering, construction, agriculture, and industrial piping systems.
Made from high-density polyethylene (HDPE) materials such as PE80 and PE100, these pipes are known for light weight, chemical resistance, excellent toughness, and long-term durability.
They are suitable for urban water supply and drainage, gas transmission, agricultural irrigation, slurry transport, and protective conduits for electric and telecommunication cables.

Inquiry Us
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
  • PE Pipe Extrusion Line
PREV：PP Pipe Extrusion Line
NEXT：PVC Pipe Extrusion Line

Product Video

Product Information

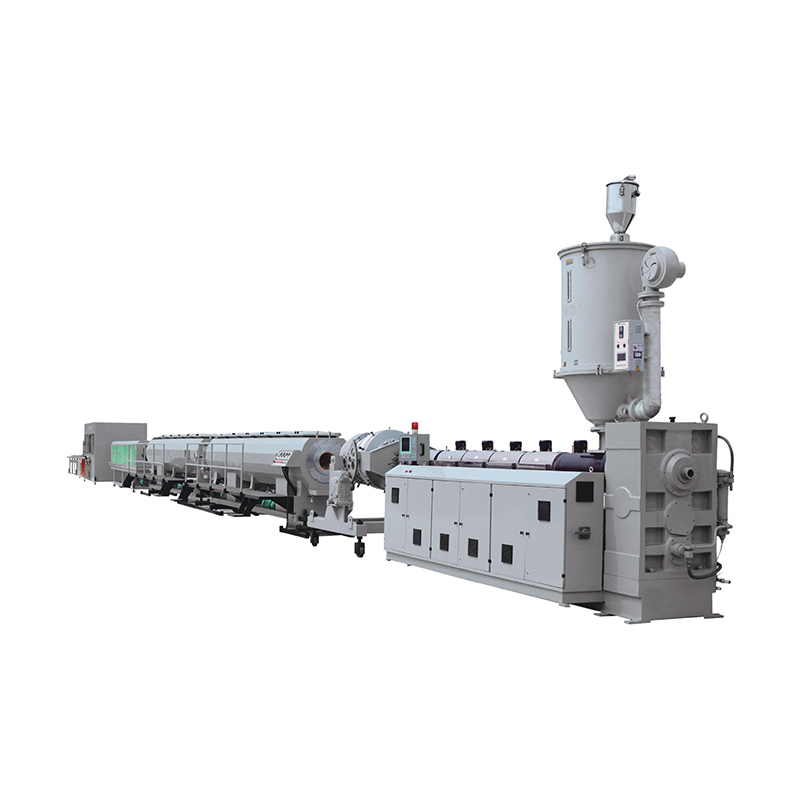

PVC Pipe Extrusion Line Includes:

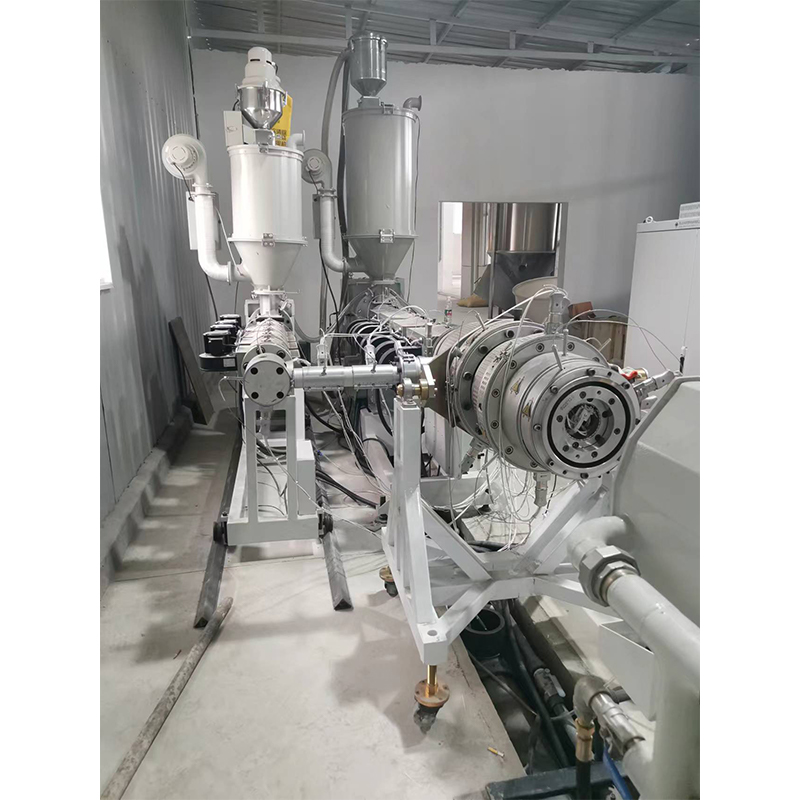

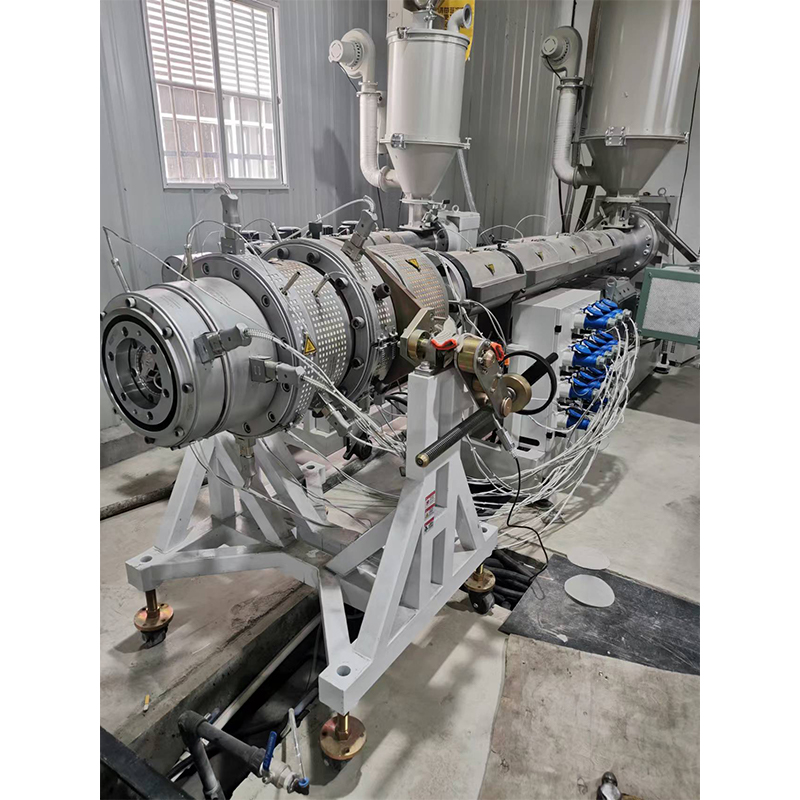

1. SJZ Series Conical Twin-Screw Extruder

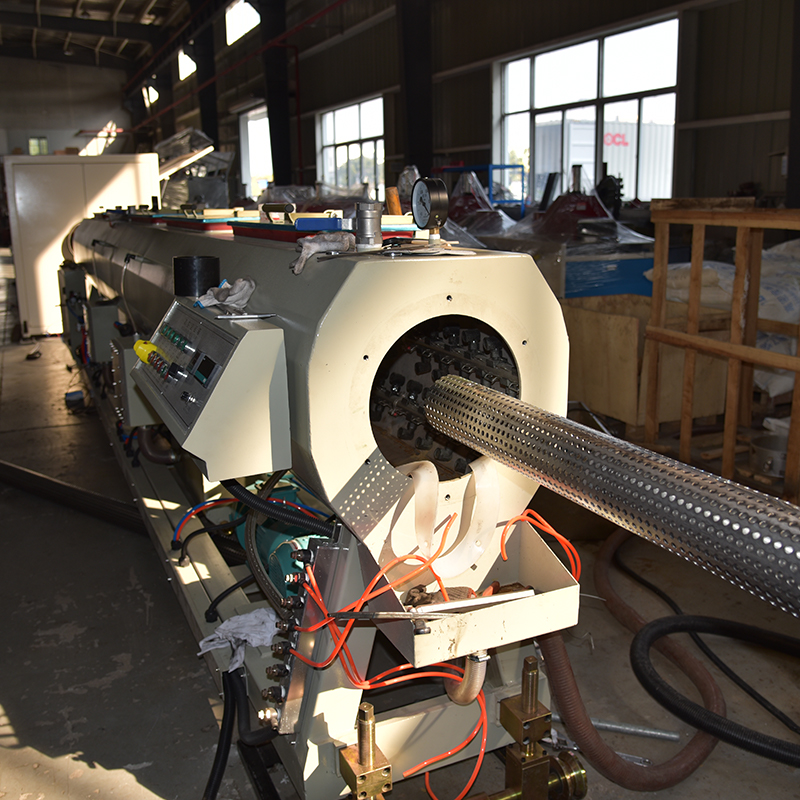

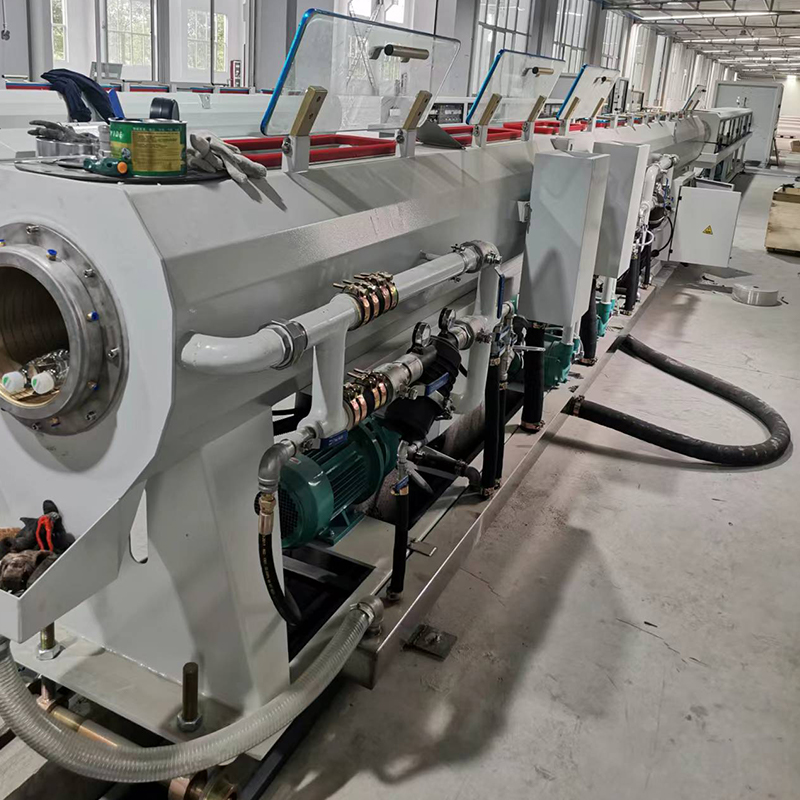

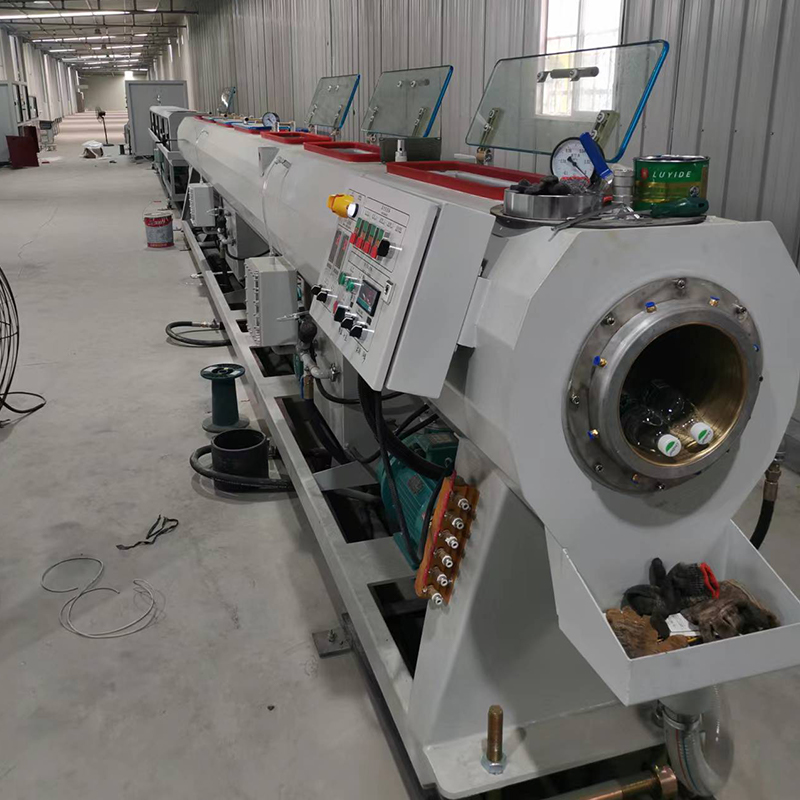

2. GF Series Vacuum Calibration Tank

3. PL Series Spraying Tank

4. YF Series Haul-Off Machine

5. YF Series Cutting Machine or Winder

Detailed Description

1. Main Applications

  • Water supply & drainage — used in potable water networks and urban sewerage systems.
  • Gas transmission — for low and medium pressure gas distribution networks.
  • Agricultural irrigation — used for drip and sprinkler systems in farmlands.
  • Industrial & mining pipelines — for chemical liquids, slurry, and abrasive media.
  • Cable protection — used as protective casing for fiber optic and power cables.

2. Material & Structure

  • Material grades: PE80, PE100 (PE100 offers higher tensile strength and pressure rating).
  • Structure: single-layer or multi-layer pipe (depending on application).
  • Standard dimension ratio (SDR): determines wall thickness and pressure rating.

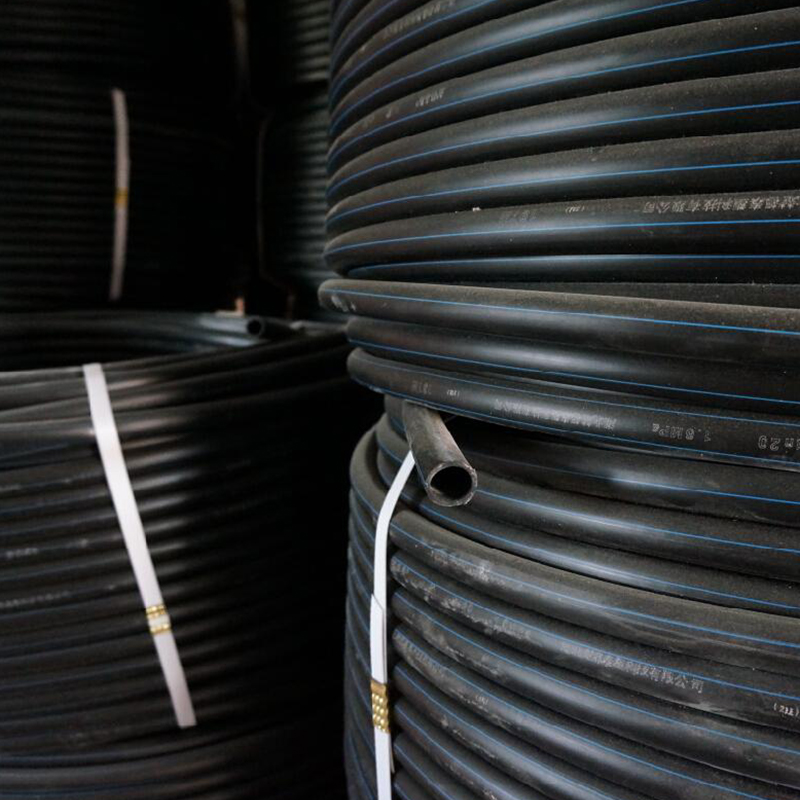

  • Form: available in coils (for small diameters) and straight lengths (for large diameters).

3. Advantages

  • Corrosion Resistance: Resists acids, alkalis, and chemical erosion; no rust or electrochemical reaction.
  • Flexibility & Impact Resistance: Handles ground settlement and seismic motion without cracking.
  • Long Service Life: Expected lifespan of up to 50 years under normal working conditions.
  • Smooth Inner Wall: Low friction coefficient ensures high flow efficiency and reduced energy loss.
  • Reliable Fusion Joints: Butt fusion and electrofusion joints ensure leak-free, high-strength connections.
  • Lightweight: Easy for handling and installation, reducing labor and transportation costs.
  • Environmentally Friendly: 100% recyclable material, non-toxic and safe for drinking water.

4. Technical Specifications

Parameter Typical Value Notes
Material Grade PE80 / PE100 HDPE resin conforming to ISO 4427 / EN 12201
SDR Range SDR11 – SDR33 Determines pressure capacity
Pressure Rating PN6 – PN20 Up to 2.0 MPa depending on SDR
Diameter Range 16 mm – 1600 mm Coiled or straight lengths
Color Black (with blue or yellow stripes) Blue for water, yellow for gas
Joining Method Butt fusion / Electrofusion / Socket fusion Leak-proof joint connection

5. Applicable Standards

PE pipes comply with international and national standards including:

  • ISO 4427 / EN 12201 — Water supply systems
  • ISO 4437 / EN 1555 — Gas distribution systems
  • ASTM D3035 / D3350 — HDPE pressure pipe
  • GB/T 13663 — Chinese national standard for water supply PE pipe

6. Applications by Industry

Industry Application Examples
Municipal Engineering Urban water supply & drainage, gas distribution
Agriculture Irrigation systems, fertilizer delivery pipelines
Industry & Mining Slurry transport, chemical discharge
Energy & Telecom Cable protection conduits, optical fiber casing
Construction Underground drainage and stormwater pipelines

7. Packaging & Transportation

  • Pipes are packaged in bundles or coils, wrapped with protective film or straps.
  • Each batch includes product labeling, inspection certificates, and traceability codes.
  • During transportation, pipes must be protected from direct sunlight and mechanical impact.
  • Coiled pipes can be easily handled and unrolled on-site for efficient installation.

8. Quality Assurance

  • Raw materials sourced from certified HDPE suppliers with full traceability.
  • Each production batch undergoes pressure testing, dimensional inspection, and fusion quality testing.
  • Quality management complies with ISO 9001 and environmental management with ISO 14001 standards.
  • Optional third-party inspection available upon customer request.

Comparison Table — PE Pipes vs. Other Common Pipe Materials

Feature / Property PE Pipe (Polyethylene) PVC Pipe (Polyvinyl Chloride) PP Pipe (Polypropylene) HDPE Pipe (High-Density Polyethylene)
Material Type Thermoplastic (PE80 / PE100) Thermoplastic Thermoplastic High-grade form of PE
Corrosion Resistance Excellent Good Excellent Excellent
Flexibility High (suitable for ground movement) Low (rigid) Moderate High
Pressure Rating Up to 2.0 MPa (depends on SDR) Up to 1.6 MPa Moderate Up to 2.0 MPa
Temperature Resistance -40°C to +60°C 0°C to +50°C Up to +90°C -40°C to +60°C
Connection Method Butt/Electrofusion welding Solvent cement Fusion / Mechanical Butt/Electrofusion
Service Life Up to 50 years 30–40 years 30–50 years Up to 50 years
Weight Lightweight Lightweight Lightweight Lightweight
Recyclability 100% recyclable Recyclable Recyclable Recyclable
Typical Applications Water, gas, irrigation, slurry, cable protection Water & drainage Chemical transport, hot water Water & gas systems

Key Advantages of PE Pipes Over Other Types

  • More flexible and resistant to deformation than PVC and PP pipes.
  • Offers leak-proof fusion joints instead of glued or mechanical fittings.
  • Longer lifespan and lower maintenance costs in underground installations.
  • Better seismic resistance and tolerance to soil movement.
  • Environmentally friendly, fully recyclable and safe for potable water.
