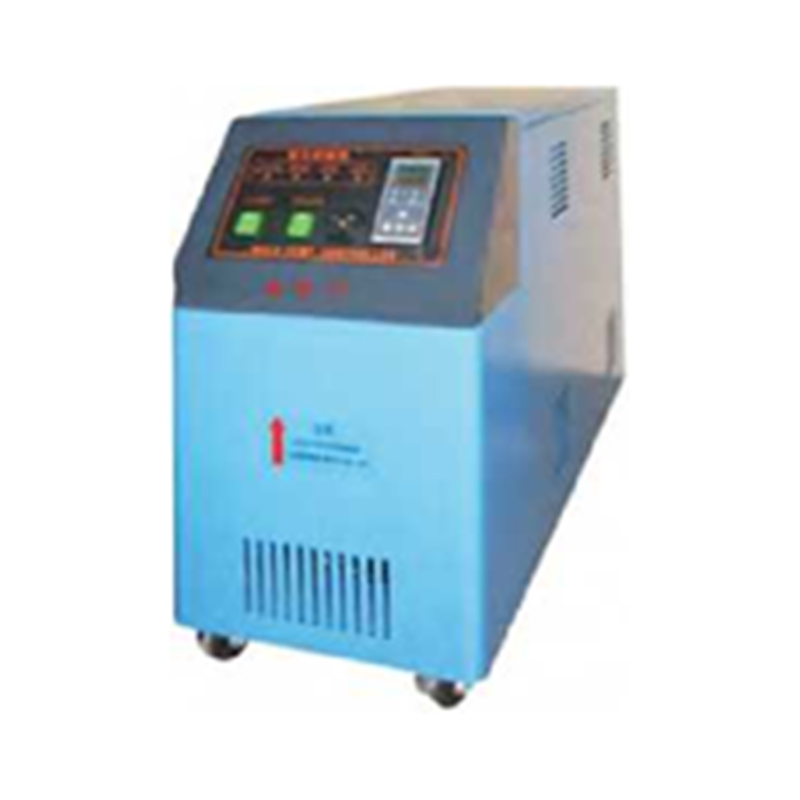

Mold Temperature Controller

Detailed Description

• Core function: The MTC heats or cools process fluid (water, oil, or heat transfer fluid) and circulates it through mold channels to maintain a set temperature using PID-controlled feedback.
• Control system: Equipped with a PID temperature controller (digital or touchscreen HMI), alarms, and optional remote communication (Modbus/Ethernet) for integration with factory automation.
• Heating and cooling elements: Electric heaters (cartridge or plate) provide fast heat-up; refrigeration compressor or water/glycol chiller provides active cooling depending on model.
• Circulation: Integrated centrifugal or gear pump(s) ensure stable flow and pressure; flow sensors and pressure gauges monitor circuit health.
• Filtration & treatment: Inline strainer/filters, magnetic separators, and optional water treatment protect tooling from particulates and scale.
• Safety and protection: Multiple protections such as over-temperature cut-off, low-fluid level, high/low pressure alarms, and phase/frequency protection for pumps and compressors.
• Construction & materials: Stainless steel or carbon steel tanks, corrosion-resistant piping, and industrial-grade components for long service life.
• Modularity & zones: Single- or multi-zone configurations allow independent temperature control for different mold circuits, improving process flexibility.
• Energy efficiency features: Insulated tanks, variable frequency drives (VFDs) for pumps/compressors, and optimized PID tuning reduce energy consumption.

Typical Specifications (example)

• Temperature range: Ambient +5 °C to 200 °C (model-dependent)
• Stability: ±0.5 °C to ±0.1 °C (depending on precision level)
• Capacity: 3–120 kW heating; refrigeration capacity 1–30 kW (model dependent)
• Flow rate: 10–200 L/min (per circuit)
• Pump pressure: 0.2–2.0 MPa (model dependent)
• Power supply: 220–480 V, 1/3-phase, 50/60 Hz

Applications

• Plastic injection molding (thermoplastics, thermosets)
• Die casting and hot runner systems
• Rubber molding (silicone, elastomers)
• Extrusion tooling and profile lines
• Composite forming and other industrial thermal processes

Installation & Commissioning

• Location: Place on level foundation with adequate ventilation and access for maintenance.
• Connections: Connect fluid inlet/outlet, electrical power, and optional communication lines.
• Commissioning steps: Fill and bleed the circuit, verify pump and flow, perform PID tuning, check safety interlocks, and run initial temperature ramp tests with no-load and then with mold load.

Maintenance & Service

• Daily checks: Fluid level, visible leaks, pump noise, and controller status.
• Monthly: Clean strainers/filters, inspect hose/piping connections.
• Annually: Replace heater elements if degraded, refrigerant system inspection, calibration of temperature sensors, test alarm functions.
• Spare parts to keep: Temperature sensors (PT100/thermocouples), pump seal kits, fuses, heater cartridges, and filter elements.

Safety & Compliance

• Protections: Emergency stop, earth leakage protection, over-temp shutoff, and pressure relief.
• Standards: Design can comply with CE, UL, and customer-specific safety standards on request.
• Operator training: Provide operator manual and mandatory training for safe operation and lockout/tagout (LOTO) procedures.

Optional Accessories & Upgrades

• Multi-zone expansion manifolds for independent circuits.
• Plate or shell-and-tube heat exchangers for oil-to-water or water-to-water systems.
• VFDs for pump and compressor to improve energy efficiency.
• Soft-start or power-factor correction modules.
• Remote monitoring and data logging (SCADA integration, cloud telemetry).
• Inline water treatment or demineralization units.

Certifications & Documentation

• User manual, wiring diagrams, CE/EMC certificates (if applicable), FAT (Factory Acceptance Test) report, and optional IQ/OQ documentation for regulated industries.

Frequently Asked Questions (FAQ)

• Q: Can I use distilled water? A: Yes — distilled or deionized water reduces scale and conductivity; consult manufacturer for pump compatibility.
• Q: What is multi-zone control used for? A: To independently control temperatures for different cavities or mold areas, improving part consistency.
• Q: How fast does it respond? A: Response depends on fluid volume, heater power, and pump flow; high-precision units with optimized PID and high-power heaters achieve faster stabilization.
