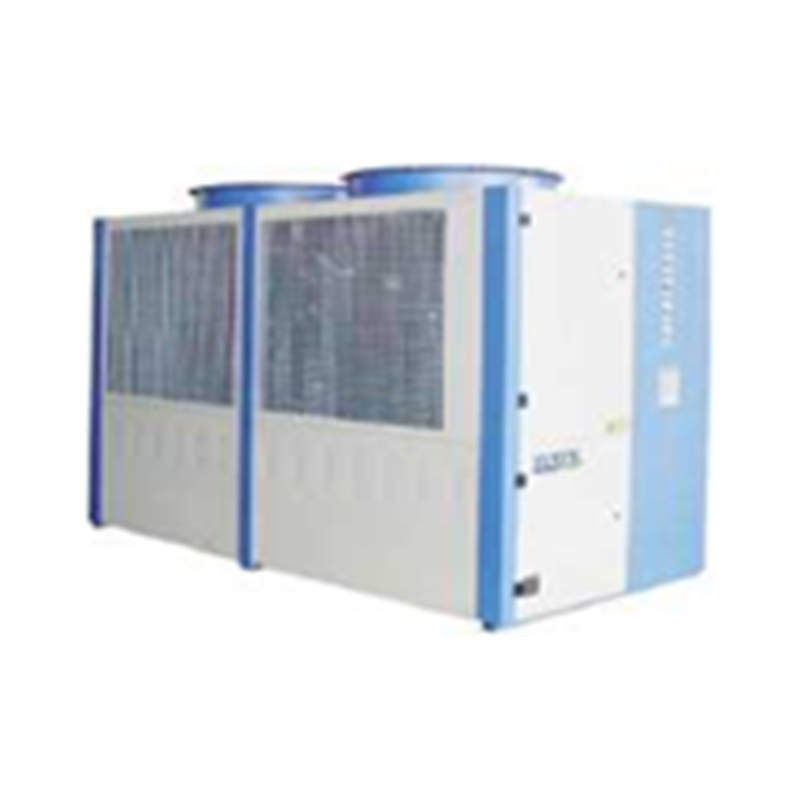

LS Series Chiller

The LS Series Chiller is a modular, energy-efficient chiller platform designed for reliable temperature control in industrial, commercial, and process cooling applications. Built for flexibility, the LS Series supports both air-cooled and water-cooled configurations and is optimised for stable operation, easy maintenance, and low life-cycle cost.

Inquiry Us
  • LS Series Chiller
PREV：Mold Temperature Controller
NEXT：FRP Counter Flow Type Cooling Tower

Product Video

Product Information

Detailed Description

  • Design & Construction

    • Robust frame and corrosion-resistant panels for long service life.
    • Compact, modular layout to simplify installation and future capacity expansion.

  • Cooling System

    • Options for air-cooled condensers or shell-and-tube / plate heat exchangers for water-cooled models.
    • Compatible with common refrigerants (e.g., R410A, R134a) and designed to meet local regulations.

  • Compressors & Controls

    • Available with scroll, screw, or inverter-driven compressors depending on duty and efficiency target.
    • Integrated microprocessor controller with PID temperature control, alarms, and remote communication (Modbus/BACnet optional).

  • Performance & Efficiency

    • Emphasis on high COP and part-load efficiency through variable speed drive options and staged compressor control.
    • Low sound-emission design choices for noise-sensitive installations.

  • Serviceability

    • Service panels and clear component layout for easy access to compressors, filters, and electrical components.
    • Built-in fault diagnostics and maintenance reminders to reduce downtime.

  • Safety & Compliance

    • Factory-fitted safety devices (pressure switches, high/low pressure protection, flow switches).
    • Designed for compliance with relevant standards (CE, UL, or local equivalents — specify when ordering).

Applications

  • Industrial process cooling (plastics, chemical processing, metalworking)
  • HVAC for commercial buildings, data centers, and hotels
  • Laboratory & medical temperature control
  • Food & beverage process and storage cooling

Typical Technical Options (select per project)

  • Capacity range: configurable (single unit or modular multiple-unit systems)
  • Cooling medium: air-cooled or water-cooled
  • Compressor type: scroll / screw / inverter scroll
  • Heat exchanger type: plate / shell-and-tube
  • Control options: basic PID / advanced BMS integration (Modbus, BACnet)
  • Refrigerant choice: R410A, R134a, low-GWP alternatives on request
  • Electrical supply: 220–480 V / 1- or 3-phase / 50/60 Hz (specify on order)

Advantages

  • Flexible configuration to match site constraints and process needs.
  • Improved part-load efficiency with VFD and staged control.
  • Ease of maintenance lowers operating expense.
  • Low noise footprint for installations near occupied spaces.
  • Scalable modular design for phased capacity growth.

Installation & Maintenance Notes

  • Provide adequate clearance for airflow (air-cooled) or service access (water-cooled).
  • Ensure proper water quality and flow rates for water-cooled models to prevent fouling.
  • Recommend annual service: refrigerant check, compressor oil condition, condenser/evaporator cleaning, and controller diagnostics.

Certifications & Safety

  • Can be supplied to meet CE, UL, or other regional standards as required.
  • Factory safety testing includes pressure tests, electrical inspections, and run-in testing prior to shipment.

Comparison with Similar Products

Feature / Metric LS Series Chiller Standard Air-Cooled Chiller Industrial Water-Cooled Chiller
Configuration Air- or water-cooled, modular Usually air-cooled, single unit Water-cooled, larger footprint
Part-load efficiency High (VFD/staged options) Medium (fixed capacity common) High (good for steady heavy loads)
Serviceability Easy (modular access design) Moderate Moderate to difficult (larger systems)
Noise level Low-noise options available Higher (fans on full speed) Lower condenser noise but requires cooling tower
Installation complexity Moderate (flexible options) Low (plug-and-play for small) High (requires cooling tower, piping)
Capital cost Competitive (depends on options) Lower for simple units Higher (cooling tower & piping)
Ideal use case Process & commercial sites needing flexibility Small commercial HVAC Large industrial plants with central cooling
