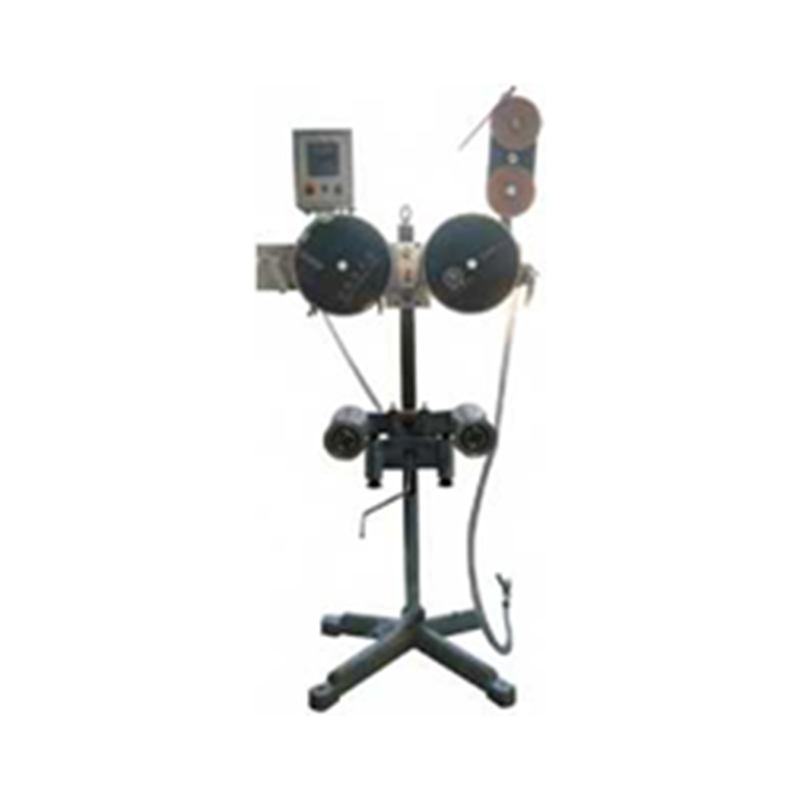

Automatic Rotary Hot Embossing Colour Marking Machine

Detailed Description

• Working Principle

  • Uses a rotary heated embossing roller (male/female die) that contacts the substrate against a pressure roller; heat and pressure transfer the foil and form the embossed pattern in a continuous motion.
  • Servo control coordinates web advance, foil indexing and embossing roll rotation to ensure precise registration.

• Core Components

  • Embossing/Heating Unit — precision temperature control with PID controller for stable embossing temperature.
  • Rotary Die/Roll — hardened, engraved sleeve for the desired pattern or text.
  • Foil/Colour Marking Module — automatic foil feed, rewind and tension control; supports metallic, coloured and holographic foils.
  • Web Handling System — dancer rollers, pneumatic tensioning and edge-guides for consistent substrate tracking.
  • Control System — touchscreen HMI, PLC logic, servo drives for speed and position control, recipe memory for quick setup.
  • Pressure Adjustment — mechanical or pneumatic pressure regulation to adapt to different substrates and embossing depths.
  • Registration & Vision (optional) — camera-based registration correction for print-to-cut and multi-colour alignment.

• Materials & Substrates

  • Compatible with paper, cardboard, PET, BOPP, PE, PP, PVC, leatherette, non-woven and thin laminates. Substrate thickness and surface treatment determine embossing parameters.

• Performance Features

  • Continuous rotary operation for high throughput and minimal indexing error.
  • Quick changeover with modular die sleeves and preset recipes.
  • Low waste foil handling and automatic foil tension compensation.
  • Energy efficient heating and standby modes.

Typical Applications

• Decorative finishing for packaging (cosmetics, luxury goods).
• Labels and shrink sleeves with metallic colour marking.
• Decorative surfaces for furniture panels, laminates and signage.
• Security/branding marks and serial number embossing for premium products.
• Textile trims and synthetic leather finishing.

Technical Specification (recommended / example fields)

• Model name: Automatic Rotary Hot Embossing Colour Marking Machine
• Process type: Continuous rotary hot embossing & foil stamping
• Drive: Servo motor for web and embossing roll synchronization
• Temperature control: PID controller, up to specified °C (model dependent)
• Substrate width: (e.g.) 150–1200 mm (model variants)
• Web speed: variable, continuous operation (model dependent)
• Registration accuracy: ±0.2–0.5 mm (typical with servo/vision)
• Foil core: automatic feed / rewind, core size options
• Power supply: 3-phase, model dependent
• Air supply: required for pneumatic components
• Footprint: compact modular frame or custom layout

(Provide exact numbers for your model when preparing brochure/spec sheet.)

Operation & Maintenance

• Start-up: Load die sleeve and foil, set temperature and pressure recipe, run web slowly to verify registration.
• Routine checks: Inspect roller surfaces, foil tension assemblies and web guides daily.
• Preventive maintenance: Clean and degrease embossing roll monthly; verify PID calibration quarterly; check servo encoder feedback annually.
• Spare parts to keep: pressure rollers, bearings, heater cartridges, encoder, spare die sleeve.

Safety & Compliance

• Safety guards around nip points and heated elements.
• Emergency stop circuits, lockable main switch and interlocks.
• Recommend compliance with local electrical and machine safety standards (CE, ISO, or regional equivalents).

Advantages / Selling Points

• High registration accuracy for multi-colour and multi-station processes.
• Continuous rotary design reduces cycle time and visible seams compared to intermittent stamping.
• Automated foil handling lowers material waste and labor.
• Modular die sleeves enable faster artwork changeovers and lower tooling costs.
• Versatile substrate compatibility — suitable for packaging, labels and decorative laminates.

Accessories & Options

• Vision registration system for print-to-foil alignment.
• In-line die cutting or slitting modules.
• Anti-static bars and corona treater for improved foil adhesion.
• Additional embossing stations for multi-layer effects.
• Remote diagnostics and recipe management software.
